What is it all about?

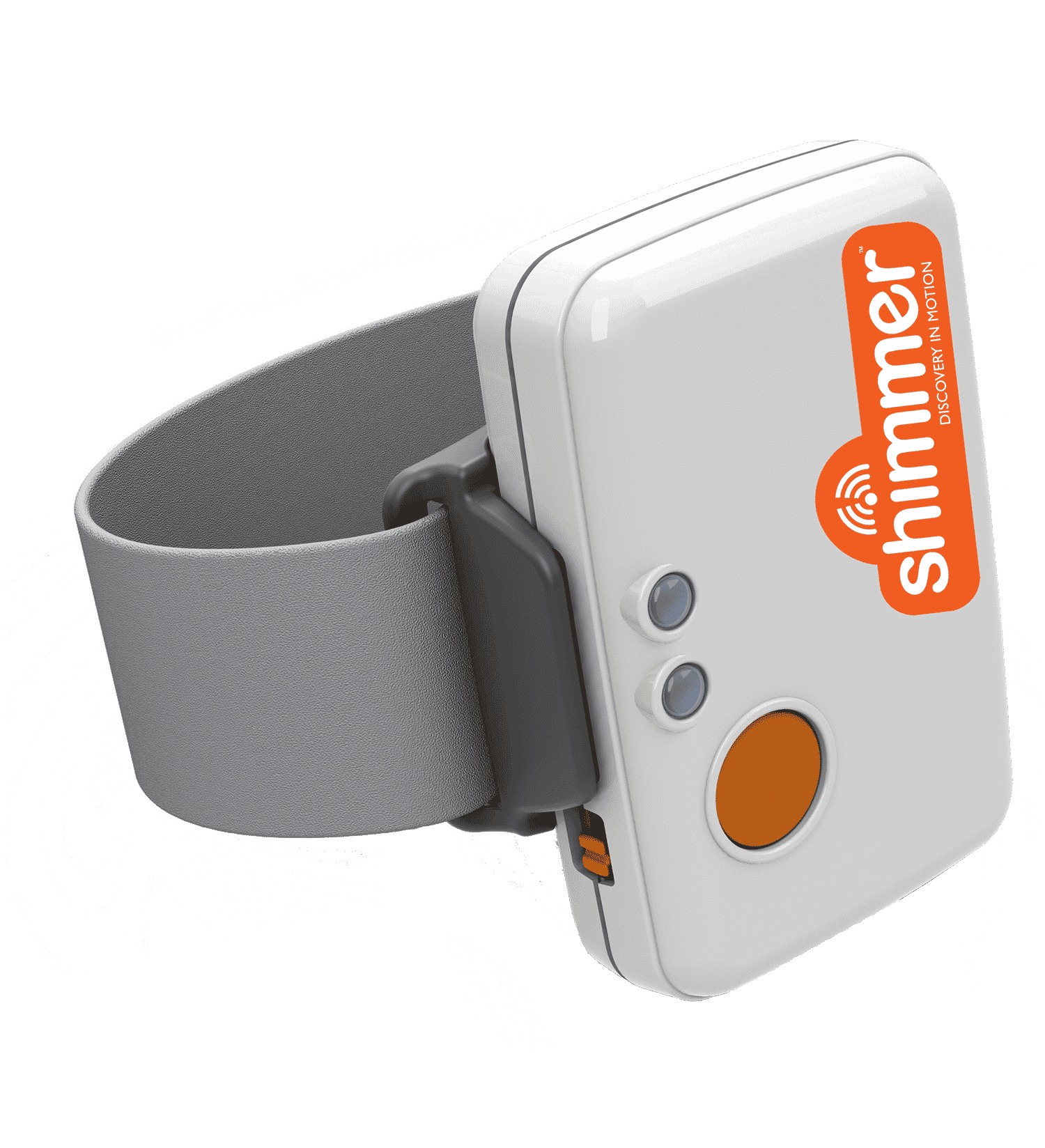

Shimmer3 is the smallest, slimmest and most robust wearable wireless sensor created by Shimmer to date. The updated module boasts a 24MHz CPU with a precision clock subsystem, making it three times faster than its predecessor.
Shimmer3 offers best data quality with integrated 10 DoF inertial sensing via accel, gyro, mag and altimeter, each with selectable range. Shimmer3 also boasts an integrated motion processor for on-board 3D orientation estimation.
Video & Images
Images
Key Features
* Very low power consumption, light weight, and small form factor * Slide-switch for powering on/off * Readily connects via Bluetooth or local storage to microSD card * SD data bypass * 24MHz MSP430 CPU * Internal and External connectors for expansion (Expansion modules will include ECG, EMG, GSR, and others) * Best data quality - Integrated 10 DoF inertial sensing via accelerometer, gyroscope, magnetometer, and altimeter, each with selectable range Integrated motion processor for on-board 3D orientation estimation * 5 colored LEDs across 2 locations to indicate device status and operating mode * Two accelerometers give choice between ultra-low noise or wide range * Integrated Li-ion battery management * JTAG debugging mode available * Expansion headers for alternative radio or customization
Pricing
Yearly
Monthly
Lifetime
Free
Freemium
Trial With Card
Trial No Card
By Quote
Description
359 Euros
